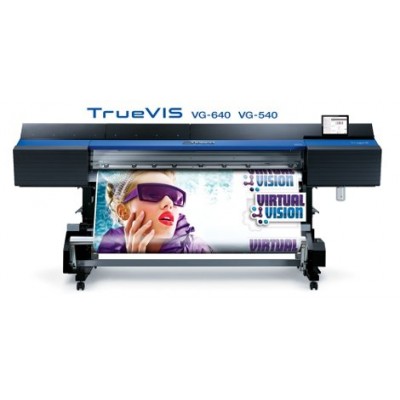

Roland TrueVIS VG-640

Vibrant Images and Brilliant Results

Everything about the way the TrueVIS produces images has been perfected. Four completely new FlexFire™ printheads fire precision droplets in 3 sizes and a wide print swath. Every drop of ink falls exactly where it is intended, delivering beautiful images and uniform colors at production speeds.

Maximum Ink Quality at Minimal Cost

All new TrueVIS INK is a major step forward in eco-solvent technology, delivering a wide color gamut and improved output, while meeting stricter environmental standards and user demands for lower costs, without sacrificing quality. 500ml pouches fit neatly into reusable cartridges and slide into a hidden ink bay for clean usage and less waste. TrueVIS INK is also GREENGUARD Gold certified and does not require any special ventilation or environmental equipment.

TrueVIS INK is available in 500ml pouches in the following configurations:

• CMYK(x2) – Dual CMYK for maximum productivity
• CMYKLcLmLk – Light Cyan, Light Magenta and Light Black for fine details and smooth gradations
• CMYKLcLmLk+W – White ink allows for enhanced printing on dark or clear substrates



New Cutting Technology Improves Accuracy and Saves Time

Roland DG started with cutting and we haven’t stopped since. The TrueVIS features our most advanced print/cut technology to date. A new carriage and blade offer increased downforce and accuracy, allowing you to work with a wider variety of media.

Production with Smart New Tech

In addition to a built-in control panel, a new Roland DG Mobile Panel allows you to perform control panel functions of VG printer/cutters with your existing smartphone or tablet using a Bluetooth connection. This innovative new feature provides a rich interface directly on, or remotely in range of, your TrueVIS. Receive status updates as well as remotely manage production, test printing, and cleaning functions. Very smart.

The VG is built to make everyday operation easier in the following ways:

• Attractive and rigid new industrial design that minimizes vibrations to optimize printing and cutting
• Illuminated and colored LED lights signal status of the machine
• Improved motor and drive systems add durability for heavy users

• Included take-up and optional drying units boost performance during high-volume, unattended operation



All new VersaWorks Dual RIP Included

VersaWorks Dual – free with the TrueVIS – features a new core engine for better file processing, including files with transparencies, plus the advanced and ease-of-use capabilities that VersaWorks is known for.

• Now with native PDF processing, including files with transparencies
• Supports up to four Roland devices
• User-friendly interface
• Predictive Ink Calculator
• Built-in Pantone and Roland Color spot color libraries
• Variable data printing
• Embedded ICC support ink level adjustment tools
• Advanced cropping, tiling and nesting options

Specifications		VG-640	VG-540
Printing technology		Piezoelectric inkjet
Media	Width	8.3in - 64in (210mm - 1,625 mm)	8.3in - 54in (210mm - 1,371mm)
	Thickness	Maximum 39 mil (1.0 mm) with liner for printing
		Maximum 16 mil (0.4 mm) with liner and 9 mil (0.22mm) without liner for cutting
	Roll outer diameter	Maximum 8.3 in. (210 mm)
	Roll weight	Maximum 88 lbs. (40 kg)	Maximum 66 lbs (30 kg)
	Core diameter *1	3 in. (76.2 mm) or 2 in. (50.8 mm)
Printing/cutting width *2		Maximum 63 in (1,600 mm)	Maximum 53 in (1,346 mm)
Maximum speed (dual CMYK, 2-pass)		375 sqft/hr.	345 sqft/hr.
Standard speed (dual CMYK, 6-pass)		153 sqft/hr.	144 sqft/hr.
Replacable Ink Pouch	Type	Roland TrueVIS INK
	Capacity	500 cc CMYK Lc Lm Lk +WH
	Colors	CMYKCMYK, CMYKLcLmLk, CMYKLcLmLk+WH
Printing resolution (dots per inch)		Maximum 900 x 900 dpi
Cutting speed		10 to 300 mm/s
Blade force		30 to 500 gf
Blade offset		0 to 0.059 in (0 to 1.5 mm)
Software resolution (when cutting)		0.000984 in/step (0.025 mm/step)
Distance accuracy (when printing) *3 *4		Error of less than ±0.3 % of distance traveled, or ±0.3 mm, whichever is greater
Distance accuracy (when cutting) *3		Error of less than ±0.4% of distance traveled, or ±0.3 mm, whichever is greater
		When distance correction has been performed (when the setting for [CUTTING MENU] - [CALIBRATION] has been made): Error of less than ±0.2% of distance traveled, or ±0.1 mm, whichever is greater
Repeatability (when cutting) *3 *5		±0.1 mm or less
Alignment accuracy for printing and cutting *3 *6		±0.5 mm or less
Alignment accuracy for printing and cutting when reloading media *3 *7		Error of less than ±0.5% of distance traveled, or ±3 mm, whichever is greater
Media heating system *8	Print heater	Setting range for the preset temperature: 86 to 112ºF (30 to 45ºC)
	Dryer	Setting range for the preset temperature: 86 to 122ºF (30 to 50ºC)
Connectivity		Ethernet (10BASE-T/100BASE-TX, automatic switching)
Power-saving function		Automatic sleep feature
Power requirements		AC 100 V to 120V ±10%, 9.8A, 50/60Hz	AC 100 to 120 V ±10%, 7.5A, 50/60 Hz or
Power consumption	During operation	1,270 W	Approx. 955 W
	Sleep mode	40 W	Approx. 15.1 W
Acoustic noise level	During operation	64 dB (A) or less
	During standby	41 dB (A) or less
Environmental	Power on	Temperature: 15 to 32ºC (59 to 90ºF) [20ºC (68ºF) or more recommended], Humidity: 35 to 80%RH (no condensing)
	Power off	Temperature: 5 to 40ºC (41 to 104ºF), humidity: 20 to 80%RH (no condensing)
Dimensions (with stand)		116(W) x 29.4(D) x 51.6(H) in 2,945(W) x 745(D) x 1,310 (H) mm	105.8(W) x 29.4(D) x 51.6(H) in  2,685(W) x 745(D) x 1,310(H) mm
Weight (with stand)		451.9 lbs (205 kg)	421 lbs (191 kg)
Included items		Stand, power cord, blade, blade holder, media clamps, media holder, replacement blade for separating knife, software RIP, user's manual, etc.



*1 The media holder of this machine is exclusively for media with a paper tube core inner diameter of 3 inches. To use a 2 inch media core, please use the optionally available media flanges. *2 The length of printing or cutting is subject to the limitations of the program.
*3 Using Roland specified media, loaded correctly, temperature: 25 ºC (77ºF), humidity: 50 %RH, all pinch rollers are used, 25 mm or more for both right and left margins and 35 mm or more front margin, excluding expansion or contraction of the media. and all correction and adjustment functions of this machine have been made properly. Not assured when the print heater or dryer is used.
*4 Using Roland specified media, print travel of 1m
*5 [PREFEED] menu item must be set to "ENABLE," 64-inch and 54-inch models, media over 610 mm wide, and 4,000 mm long
*6 Provided that media length is under 3,000 mm. Excluding possible shift caused by expansion/contraction of the media and/or by reloading the media.
*7 Using Roland specified media, 64-inch and 54-inch models: data size: 1,000 mm in the media-feed direction, 1,600 mm in the carriage-movement direction.No lamination. Automatic detection of crop marks at 4 points when media is reloaded. During cutting, [PREFEED] menu item must be set to "ENABLE." Excludes the effects of slanted movement and of expansion and contraction of the media.
*8 Warm-up is required after powerup. This may require 5 to 20 minutes, depending on the operating environment. The preset temperature may fail to be reached depending on the ambient temperature and media width.



Roland Versa Works Dual System Requirements
Operating system	Windows® 10 (32/64-bit)
	Windows® 8/8.1 (32/64-bit)
	Windows® 7 Professional / Ultimate (32/64-bit)
CPU	Intel® Core™2 Duo, 2.0 GHz or faster recommended
RAM	2 GB or more recommended
Video card and monitor	A resolution of 1,280 x 1,024 or more recommended
Free hard-disk space	40 GB or more recommended
Hard-disk file system	NTFS format
Optical drive	DVD-ROM drive



* Roland VersaWorks Dual is a 32-bit application, which runs on 64-bit Windows® with WoW64 (windows 32-bit on Windows 64-bit).
