■Maximum modeling area: 483 x 305mm (19 x 12")
■Support of HP-GL*1 and G code*2 enables the NC-5 to work with vareious modeling software / CAD software and CNC commands.
■Mechanical Resolution: 0.5μm
■High Horse Power: 1HP(750w)
■Simultaneous 3-axis linear interpolation command for smooth and speedy 3D modeling.
■Models on metals as well as plastics.
■Rigid construction and precisely controlled servo motors for all X, Y and Z axes provide very accurate modeling.
■Coolant can be applied while modeling.
■Collet spindle can use modeling tools (up to 10mm (0.4") shank diameter)
■T-slot table and Vacuum table options are available.
■Z stroke is 110mm (4.3")
■Handy operation panel for ease of use.

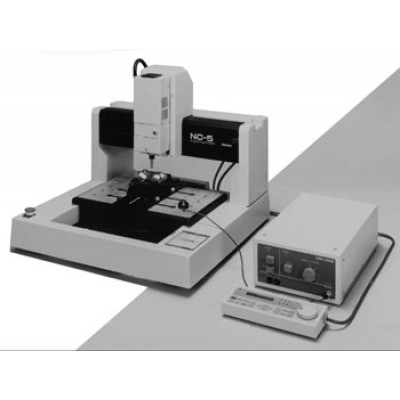

| NC-5 |
|---|
X-Y
Axes | Working surface | 483mm x 305mm (19" x 12") *1 |
|---|
| Maximum Material Size | 520mm x Unlimited (20.5" x Unlimited) |
|---|
| Speed | Modeling | 0.5-80mm / sec (0.02"-3.1" / sec) |
|---|
| Moving | 0.5-80mm / sec (0.02"-3.1" / sec) |
|---|
| Acceleration | 0.3G |
|---|
| Mechanical Resolution | 0.5μm |
|---|
Z
Axis | Z stroke | 110mm (4.3") |
|---|
| Maximum Material Height | 130mm (5.1") |
|---|
| Speed | Modeling | 0.5-80mm / sec (0.02"-3.1" / sec) |
|---|
| Moving | 0.5-80mm / sec (0.02"-3.1" / sec) |
|---|
| Mechanical Resolution | 0.5μm |
|---|
| Command | MGL-IIC3, G *2 |
|---|
| Spindle | Maximum Rotation | 15000rpm |
|---|
| Adjustable step | Stepless adjustment 2,000-15,000 rpm |
|---|
| Positioning | JOG Key or JOG Dial |
|---|
| Maximum Material Weight | 10kg |
|---|
| Method of setting Endmill | Collet Chuck |
|---|
| Programmable Steps | 25μm or 10μm (MGL-IIC3), 1μm (G) |
|---|
| Maximum Shank Diameter of Endmill | 10mm (0.4") |
|---|
| Receiver buffer size | 1MB |
|---|
| Interface | RS-232C |
|---|
| Table flatness accuracy | 0.2mm |
|---|
| Distance accuracy | ±0.15mm or ±0.05% of moving distance |
|---|
| Perpendicularity | ±0.3mm / 300mm |
|---|
| Repeatability | 0.05mm |
|---|
| Origin repetition accuracy | ±0.1mm |
|---|
| Power consumption | 1,400VA or less |
|---|
| Power requirement | AC 100-120 / 220-240V 50 / 60Hz (Changed by Tap) |
|---|
| Operation enviorment | 5-40ºC 30-75% (Rh) No Condensation |
|---|
| Dimensions (W x D x H) | 725mm x 755mm x 660mm (Body) |
|---|
| 285mm x 505mm x 162mm (Controller) |
| Weight | 70kg (Body) |
|---|
| 25kg (Controller) |
