Ricoh MH5320 GEN6 Printhead

Name: Ricoh MH5320 GEN6 Printhead
Brand: RICOH
Price: 1500.0000 USD
Availability: InStock

rating

(0 reviews)Write a review

$ 1,500.00

Brand: RICOH
Product Code: CPS-RICOH-MH5320
Availability: In Stock

Ricoh MH5320 GEN6 Printhead This Ricoh GEN6 head (MH5320 series) is compatible with UV based inks. The service life of the MH5320/MH5340 is more than ..

Qty

Free Shipping

Ships Today

Easy

Returns

Lowest Price

Guarantee

Description

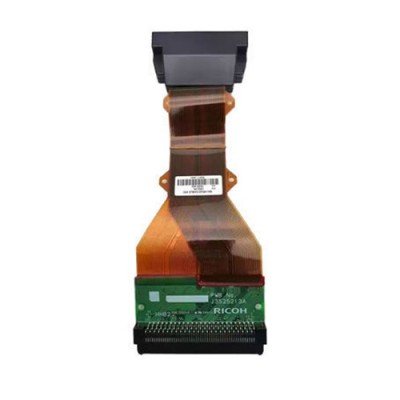

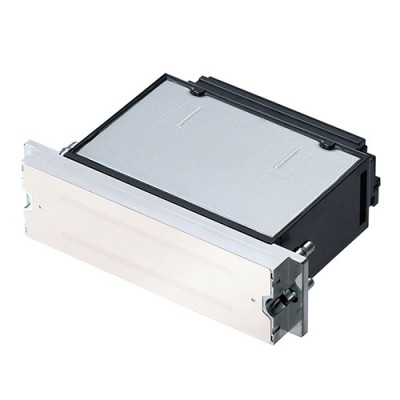

Ricoh MH5320 GEN6 Printhead

This Ricoh GEN6 head (MH5320 series) is compatible with UV based inks. The service life of the MH5320/MH5340 is more than double that of the MH5421/MH5441 that preceded it.

A minimized 5pl droplet size and improved jetting accuracy yields excellent print quality without graininess. With 1,280 nozzles configured in 4 x 150dpi rows, this head achieves high-resolution 600dpi printing. Greyscale features a maximum frequency of 50kHz, allowing for increased productivity.

This prinhead is available with a cable (including connector) of either 145mm or 447mm. This printhead has a cable of 447mm and a total length including the printhead of 500mm.

This printhead is made of the two skus J352-04 and J376-03.

The following items are expressly excluded from warranty coverage:
- Defects in printers related, in any way, to the use of any non-original or DIGINK inks or ink cartridges and nozzle clogging
- Defects related to misuse, abuse, accident, neglect, lack of use, or improper storage when not in use for extended periods
- Defects related to failure to perform periodic maintenance as specified in the user documentation; operation for unintended purposes
- Defects related to improper loading of media
- All other defects, failures or damage not considered manufacturing defects
- Defects related to third-party applications, software, parts, components, or peripheral devices, including any bulk ink system.
- Defects that are merely cos

Product Specifications:
    Dimensions: 89 x 25 x 69 mm (excluding cables)
    Head materials: SST, Nickel alloy and Epoxy Adhesive
    Nozzle plate surface: Coated SST
    Number of nozzles: 4 x 320 nozzles
    Nozzle spacing: 0.1693 mm
    Nozzle density: up to 600 npi
    Temperature control: Integrated Heater and Thermistor
    Operator temperature range: 60° C
    Drop volume: Binary mode : 5pl / Grey-scale mode : 5-15pl
    Jetting frequency: 50kHz (3 levels); 40kHz (4 levels)
    Ink compatibility: UV

This printhead carries a manufacturer warranty. Country of origin : Japan
